Working principle:
The rail side lubrication device body is fixed on the crane. The rail side lubrication device clamps the track and drives the lubrication wheel to rotate during equipment operation, using this as power to pump out a small amount of anti-wear agent and evenly apply it on the side of the track through the lubrication wheel.
When the equipment is running forward and backward, the rail side lubrication device can pump out the anti-wear agent. After the equipment stops, the pump stops working at the same time to prevent the leakage of the anti-wear agent.

Basic parameters:

Scope of application: Track products with a width between 40-120mm

Traffic:

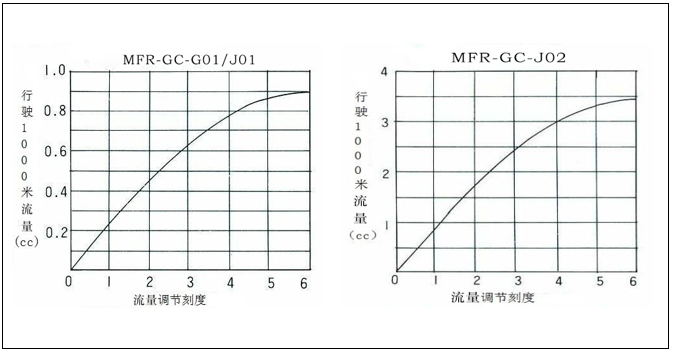

Pump specifications:

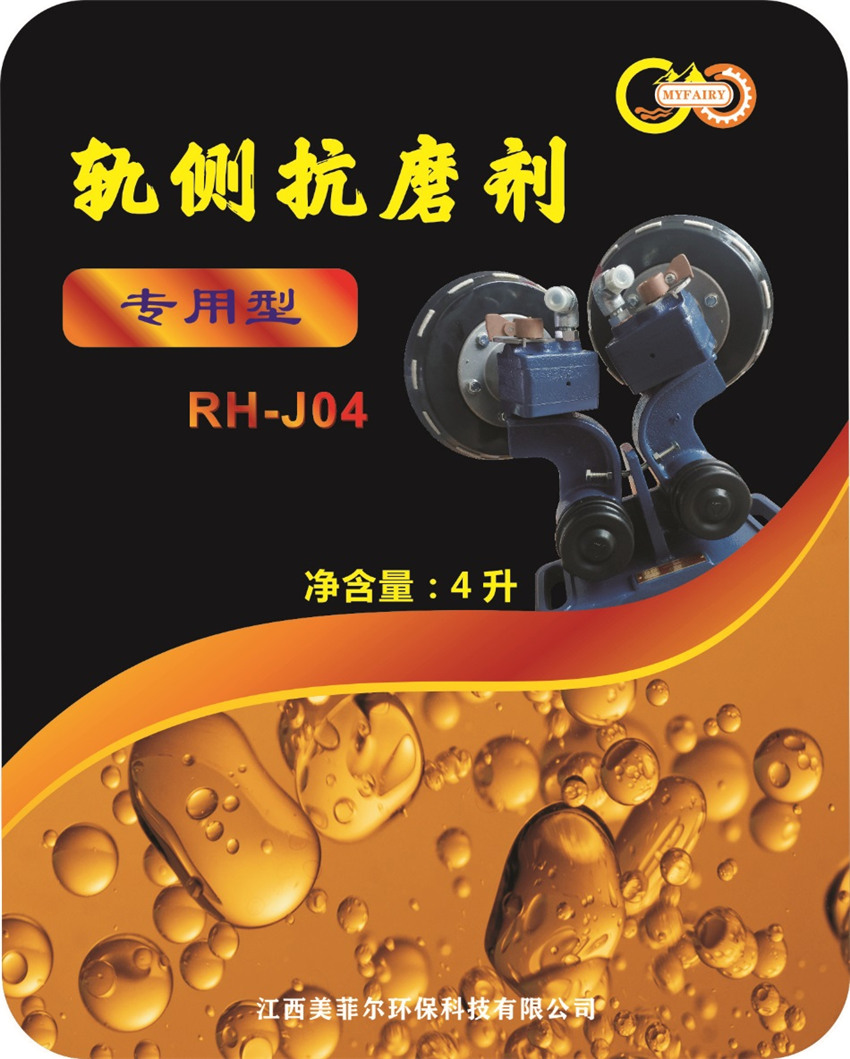

Rail side anti-wear agent (special type)

Main body rough construction diagram

Product effects and characteristics

Usage effect

• Replacing manual lubrication, reducing unnecessary downtime, and avoiding safety hazards caused by high-altitude lubrication;

• Effectively reduce the wear of the track and wheel rims, and roughly increase the service life of the wheels by 8-10 times or more;

• Effectively reducing vibration and noise generated by friction;

• Reduce friction during operation to make the crane run more smoothly;

• Reduce the load during crane operation, making micro operation easier;

• Significantly save electricity consumption and maintenance costs.

Product features

• Adopting unpowered automatic oiling, without the need for external power supply, energy-saving and environmentally friendly. Transforming mechanical friction into lubricating friction can save wheel consumption and maintenance parking time;

• The device is evenly lubricated on the side of the track and will not apply to the surface of the track, so there is no need to worry about slipping during operation;

• The lifespan of the main body is generally over 10-20 years (outdoor for over 10 years, indoor for over 20 years), with extremely high cost-effectiveness;

• By using high-performance power pumps and precisely controlling the application amount, a small and stable lubricating oil effect can be obtained;

• Special anti-wear lubricant: using professional anti-wear agents, the lubrication effect can be improved by 8-10 times.

Advantages of using rail side lubrication devices

• Adopting a rail side lubrication device to prevent wear and tear between the wheels and the track;

• Reduce the number of wheel and track updates;

• Reduce maintenance workload and downtime caused by maintenance;

• Extend the service life of machinery and save maintenance costs;

• Automation of track lubrication, eliminating the trouble caused by manual lubrication;

• Reduce the resistance of mechanical walking and reduce power consumption.

Product selection

Basic parameters:

Scope of application: Track products with a width between 40-120mm

Traffic:

Pump specifications:
